Hi-Spec Tail Lifts

Hi-Spec Tail Lifts manufacture patient lifts which are currently in use with many ambulance
authorities across the UK. Working closely with the major body builders, our ambulance tail
lifts have been designed with ambulance authority needs in mind.

We offer a 24 hour, 365 days a year support system to customers, and our trained engineers are on call to assist with your warranty or
non-warranty repairs. In addition, we supply genuine manufacturer spares which can be ordered from us directly.

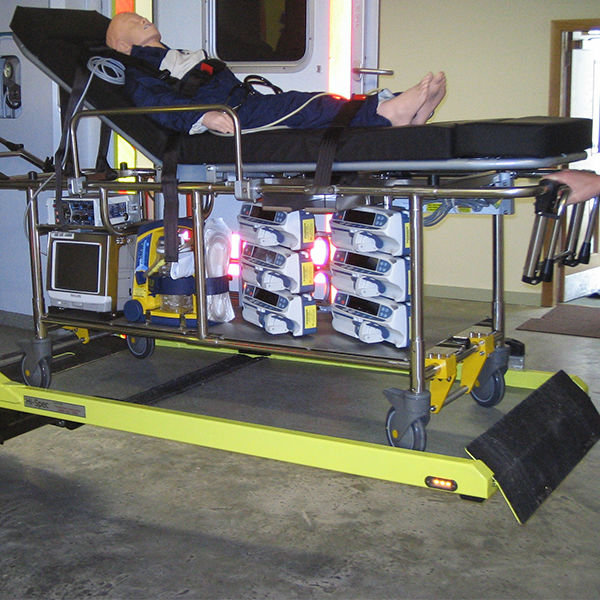

Flatlift

HS5 Flatform Lift

Unlike traditional cantilever tail lifts, our HS5 Flatform Lift has a unique flat platform which keeps the patient horiztonal at all times. This eradicates the need to tilt the platform at ground level.

The above combined with automatic front and rear patient trolley stops significantly improves transfer of patients to and from the ambulance. This lift can be fitted behind the access door or alternatively used as a rear closure, removing the need to fit a separate access door. Hinged passenger safety gates are supplied and the lift has been designed with ease of operation in mind.

We can also supply sophisticated interlocks which prevent incorrect or inadvertent operation, reducing the potential for accidents and damage.

Ambulance Flatlift

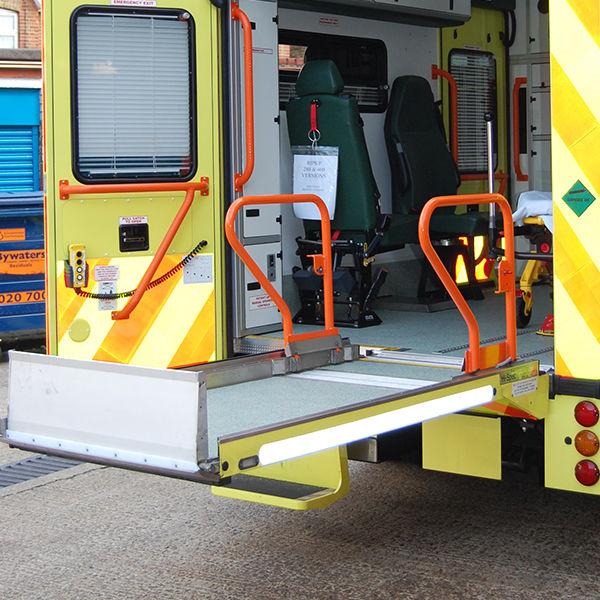

Hi-Spec 350kg Patient Tail Lift

Featuring a load centre of 1100, this is one of the most technologically advanced lifts available on the market.

The platform can form the rear door of the vehicle or can be supplied to stow behind a conventional door. Features include:

- Twin or single hand rails finished in yellow grip with platform mechanical and electric interlock
- Sides of the platform have up-stand of 40mm deep running the length of the platform
- The surface of the platform is coated with Lino to match the interior of the ambulance
- Both front and rear stops for the stretcher trolley are automatically deployed
- The underside of the platform is flush for fitting decals
- Automatic tilt at ground level only.

Patient Tail Lift

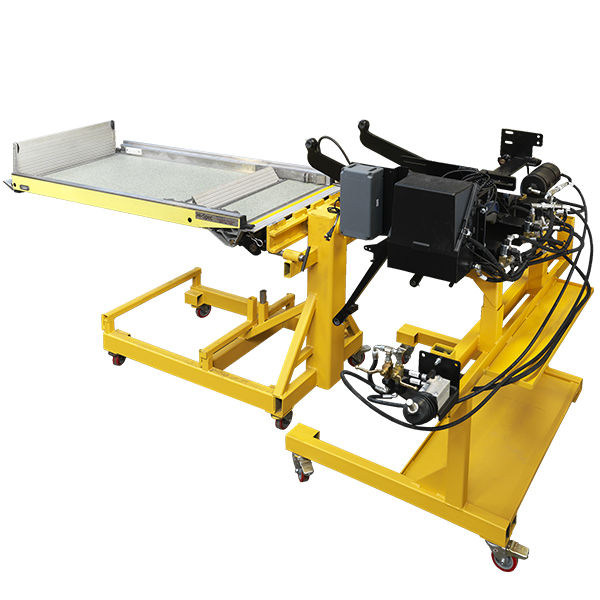

Hi-Spec 500kg Patient Tail Lift

Load centre of 1100mm and stowed behind a conventional door.

The lift mechanism is supplied with 12v or 24v power pack, with manual override and hand pump. There is a pre-wired wander lead with safety interlocked operation for all hydraulic functions:

- Platform size 750mm to 1000mm wide x 1750mm long
- Aluminium platform with anti-skid surface
- Twin or single hand rails finished in yellow grip with a mechanical lock
- The underside of the platform is flush for fitting decals
- Automatic trolley stop at the leading edge of the platform
- Sides of the platform have up-stand 40mm deep the running length of the platform
- LED light to the external side of the platform
- Bridge plate
- Automatic tilt at ground level only.

500kg Patient Tail Lift

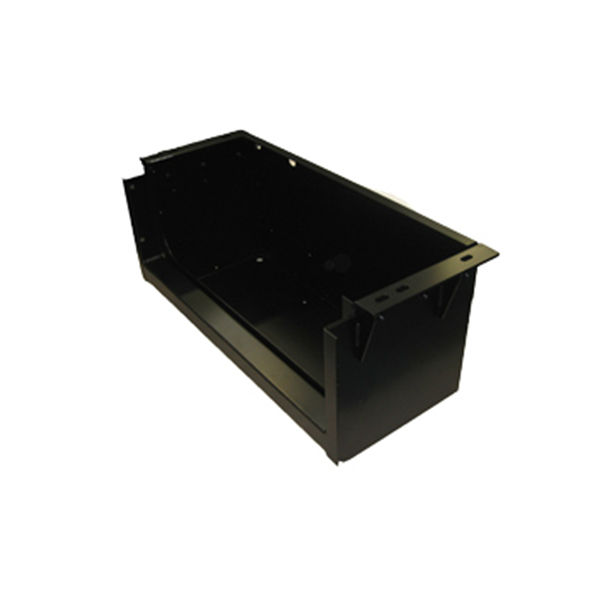

Fabricated and Formed Components

Fabrication, laser & pressing of components.

The platform can form the rear door of the vehicle or can be supplied to stow behind a conventional door. Thanks to our extensive range of state-of-the-art fabrication, laser/waterjet cutting and press braking facilities we are able to manufacture components which go into the build of front line ambulances.

These components are usually made to suit the body constructors drawings and are built using a variety of materials. This includes aluminium, stainless and mild steels of all grades.

We supply components in base metal, powder coated or plated as required.

Tail Lift Components
